Immersion block EcoBlock

WHAT IS AN IMMUNE BLOCK ECOBLOCK?

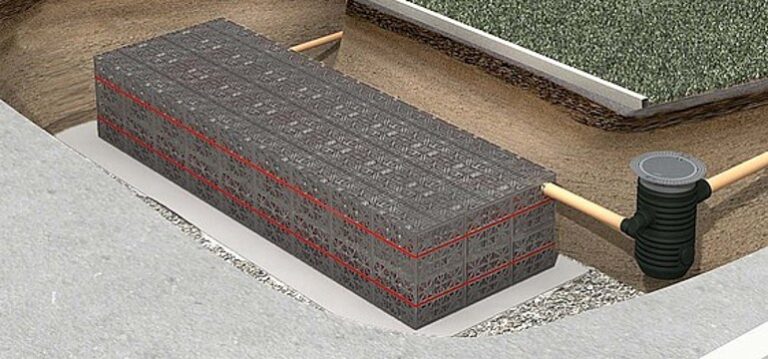

The EcoBlockrainwater immersion block is a modular system. Thanks to its compactness, the EcoBlock system is lightweight and therefore easier to transport. However, the immersion block is extremely durable and can also successfully withstand the load of trucks. One module of the block system has a capacity of 205 litres and measures 800*800*320mm.

ADVANTAGES OF THE IMMUNE BLOCK ECOBLOCK

Double capacity in transport
Light and durable
Inspectable and washable
High load capacity
Load capacity for trucks
CE certificate

Easy to install

EcoBlock is easy to install. Started at a base plate is put in place, to which the main part of the block is fixed, and finally the ends of the block are closed with end plates. Thanks to the sensor system, the EcoBlock system can also be inspected and pressure washed afterwards. The block system has prepared places for DN100, DN150 and DN200 pipe connections.

The system can be installed to a depth of up to 5 metres and up to 14 layers on top of each other. In this way, it is possible to create rainwater harvesting and infiltration systems with truly high capacity.

Ask for a quote

Blueprints

Eco-Block PDF

Download
